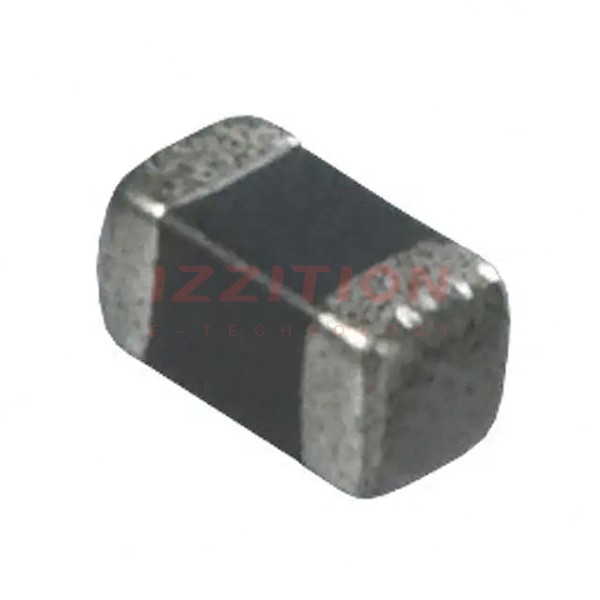

| Part Number | LQM18FN1R0M00D | LQM18FN100M00D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 150 mA | 50 mA |
| Current - Saturation (Isat) | 150mA | 50mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 260mOhm Max | 1.17Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 120MHz | 30MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) |
