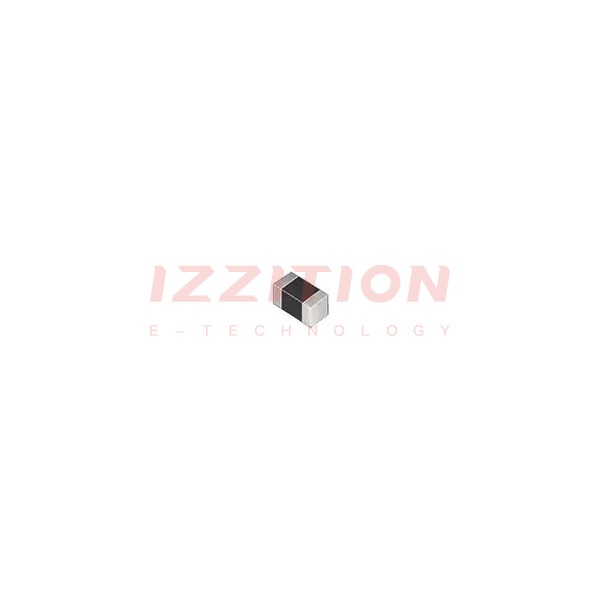

| Part Number | LQM18DZ6R8M70L | LQM18DH6R8M70L | LQM18DN6R8M70L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Multilayer | Multilayer | - |
| Material - Core | Ferrite | Ferrite | - |
| Inductance | 6.8 µH | 6.8 µH | - |
| Tolerance | ±20% | ±20% | - |
| Current Rating (Amps) | 330 mA | 330 mA | - |
| Current - Saturation (Isat) | 120mA | - | - |
| Shielding | Shielded | Shielded | - |
| DC Resistance (DCR) | 960mOhm Max | 960mOhm Max | - |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 40MHz | 40MHz | - |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 150°C | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | - |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | - |
| Supplier Device Package | 0603 | 0603 | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | - |
