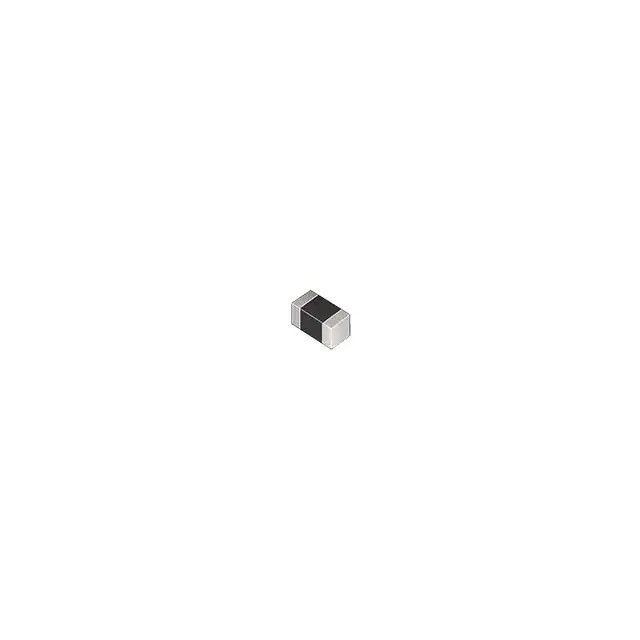

| Part Number | LQM18DZ220M70L | LQM18DH220M70L | LQM18DN220M70L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 200 mA | 10 mA | 200 mA |
| Current - Saturation (Isat) | 50mA | 50mA | 50mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.12Ohm Max | 3.12Ohm Max | 3.12Ohm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 15MHz | 15MHz | 15MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
