Please send RFQ , we will respond immediately.

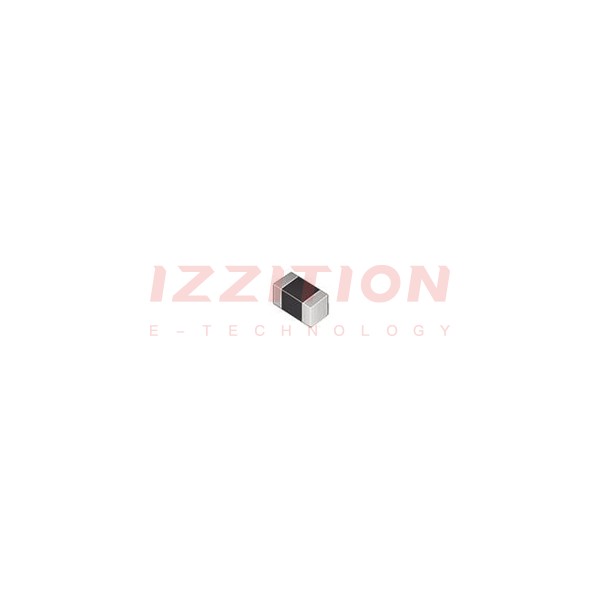

| Part Number | LQM18DN6R8M70L | LQM18DZ6R8M70L | LQM18DH6R8M70L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | - | Multilayer | Multilayer |
| Material - Core | - | Ferrite | Ferrite |
| Inductance | - | 6.8 µH | 6.8 µH |
| Tolerance | - | ±20% | ±20% |
| Current Rating (Amps) | - | 330 mA | 330 mA |
| Current - Saturation (Isat) | - | 120mA | - |
| Shielding | - | Shielded | Shielded |
| DC Resistance (DCR) | - | 960mOhm Max | 960mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | 40MHz | 40MHz |
| Ratings | - | AEC-Q200 | AEC-Q200 |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 150°C |
| Inductance Frequency - Test | - | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | - | Surface Mount | Surface Mount |
| Package / Case | - | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | - | 0603 | 0603 |
| Size / Dimension | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | 0.037" (0.95mm) | 0.037" (0.95mm) |
