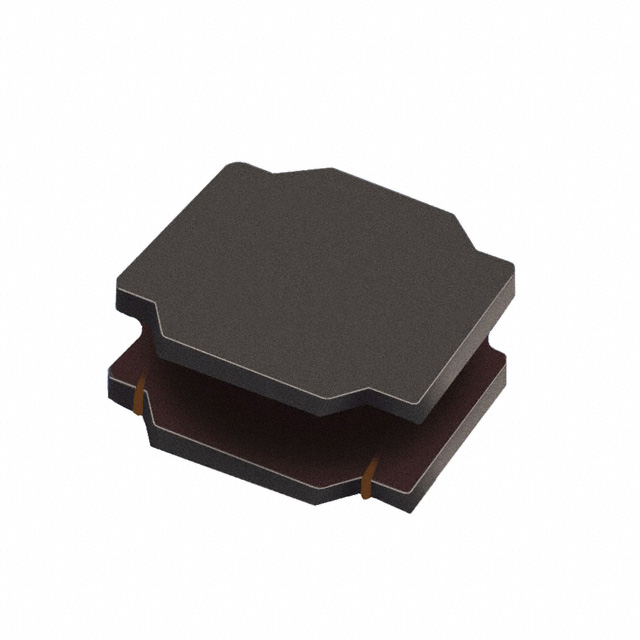

| Part Number | LQH88PN1R5N38L | LQH88PN1R0N38L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 7.1 A | 8 A |
| Current - Saturation (Isat) | 8.5A | 11.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 8mOhm | 6mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 60MHz | 100MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 3131 (8080 Metric) | 3131 (8080 Metric) |
| Supplier Device Package | 3131 (8080 Metric) | 3131 (8080 Metric) |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.150" (3.80mm) |
