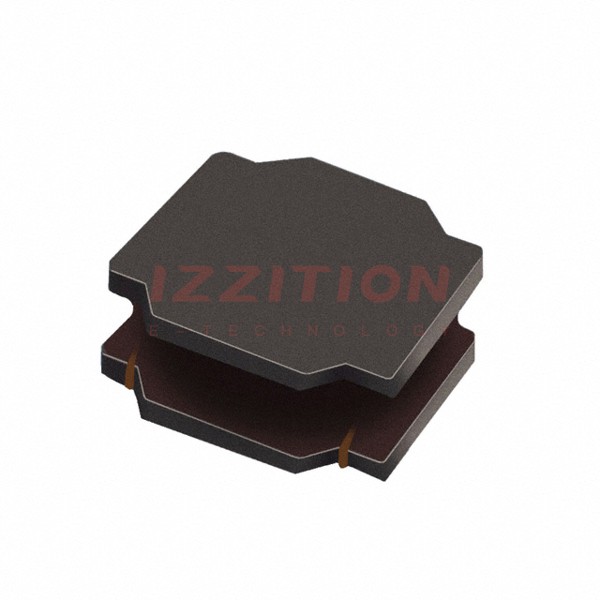

| Part Number | LQH88PN100M38L | LQH88PN150M38L | LQH88PN101M38L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 10 µH | 15 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.15 A | 2.45 A | 1 A |
| Current - Saturation (Isat) | 3.6A | 3A | 1A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 29mOhm | 41mOhm | 265mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 18MHz | 13MHz | 4MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3131 (8080 Metric) | 3131 (8080 Metric) | 3131 (8080 Metric) |
| Supplier Device Package | 3131 (8080 Metric) | 3131 (8080 Metric) | 3131 (8080 Metric) |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.150" (3.80mm) |
