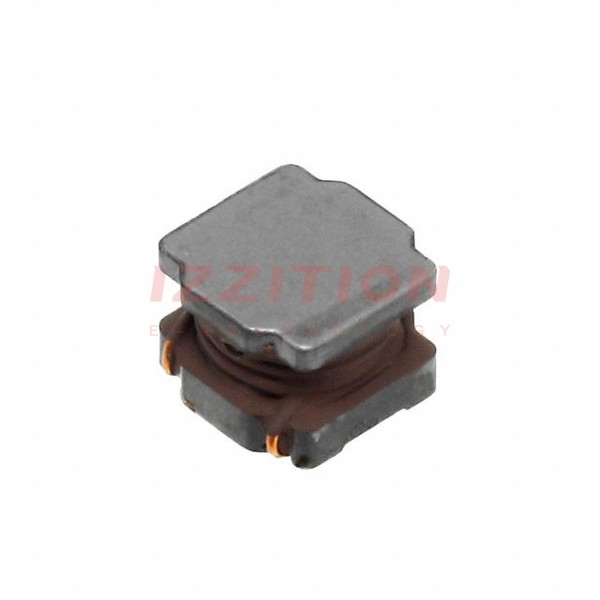

| Part Number | LQH6PPN150M43L | LQH6PPN100M43L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.2 A | 2.6 A |
| Current - Saturation (Isat) | 2.2A | 2.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 65mOhm | 44mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 10MHz | 15MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2424 (6060 Metric) | 2424 (6060 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) |
