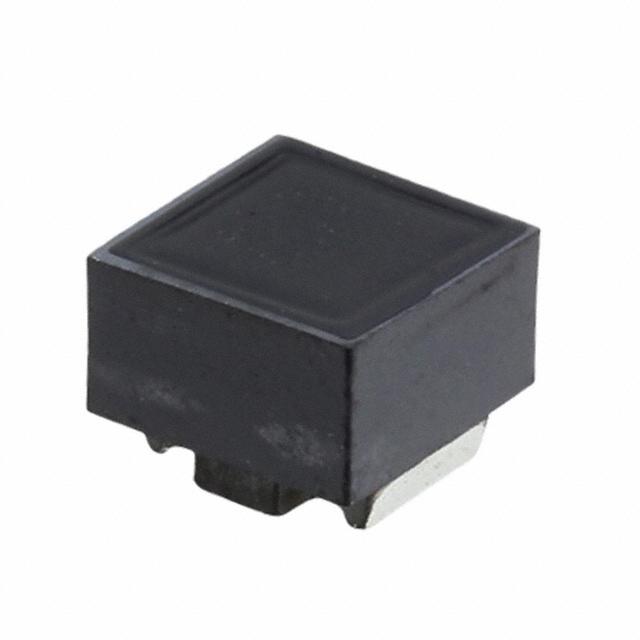

| Part Number | LQH66SN2R2M03L | LQH66SN222M03L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 mH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.3 A | 100 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 26.6mOhm Max | 13.16Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 80MHz | 1.2MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 80°C |
| Inductance Frequency - Test | 1 MHz | 10 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 2525 (6363 Metric) | - |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
