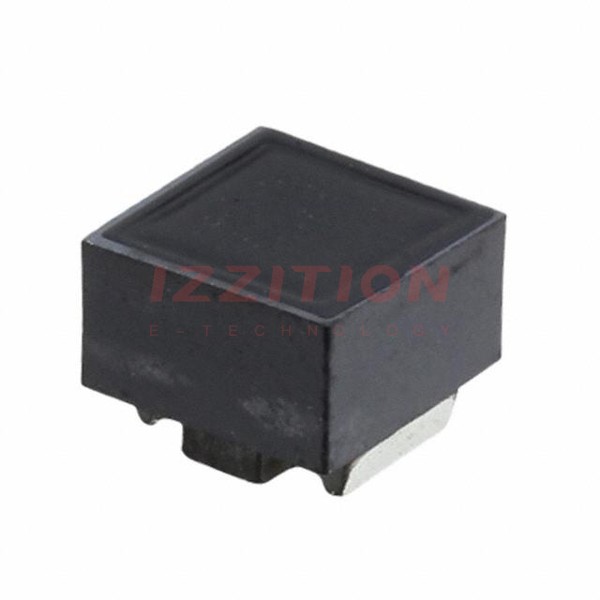

| Part Number | LQH66SN1R0M03L | LQH66SN1R5M03L | LQH66SN100M03L | LQH66SN150M03L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.7 A | 3.8 A | 1.6 A | 1.3 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 18.2mOhm Max | 22.4mOhm Max | 50.4mOhm Max | 96.6mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 150MHz | 110MHz | 20MHz | 17MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 80°C | -40°C ~ 80°C | -40°C ~ 80°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 2525 (6363 Metric) | 2525 (6363 Metric) | 2525 (6363 Metric) | 2525 (6363 Metric) |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
