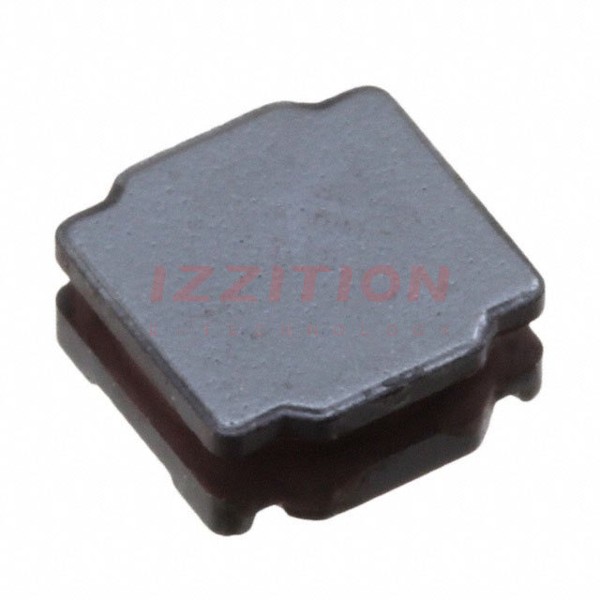

| Part Number | LQH5BPN1R0N38L | LQH5BPN1R5N38L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | - |
| Material - Core | Ferrite | - |
| Inductance | 1 µH | - |
| Tolerance | ±30% | - |
| Current Rating (Amps) | 4.6 A | - |
| Current - Saturation (Isat) | 7A | - |
| Shielding | Shielded | - |
| DC Resistance (DCR) | 12mOhm | - |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 54MHz | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | - |
| Inductance Frequency - Test | 100 kHz | - |
| Features | - | - |
| Mounting Type | Surface Mount | - |
| Package / Case | Nonstandard | - |
| Supplier Device Package | - | - |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - |
| Height - Seated (Max) | 0.157" (4.00mm) | - |
