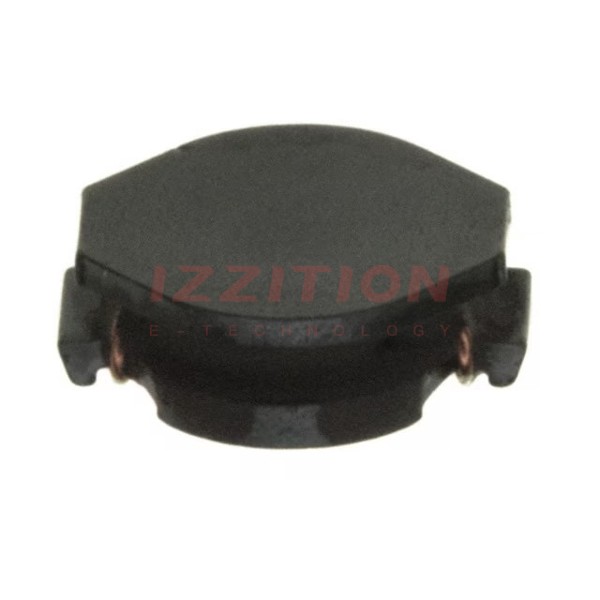

| Part Number | LQH55PN2R2NR0L | LQH55PN2R7NR0L | LQH55PN1R2NR0L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 2.2 µH | 2.7 µH | 1.2 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.5 A | 2.15 A | 2.9 A |
| Current - Saturation (Isat) | 2.1A | 2.07A | 2.6A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 31mOhm | 40mOhm | 21mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 60MHz | 50MHz | 80MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.073" (1.85mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
