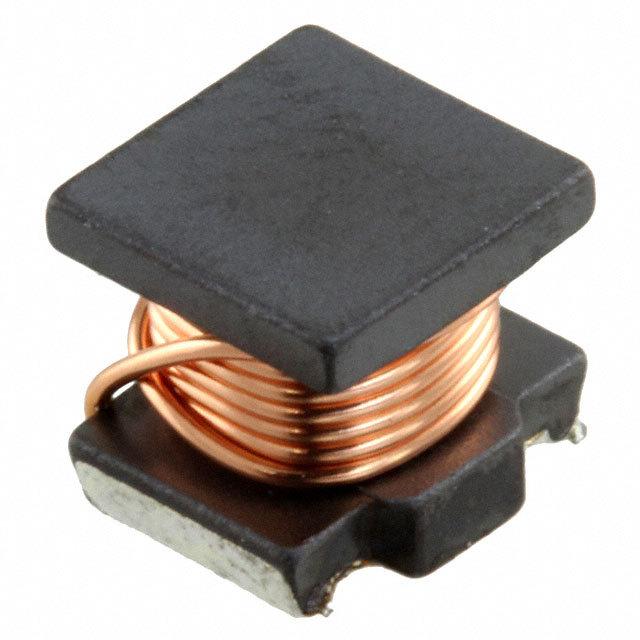

| Part Number | LQH55DNR27M03L | LQH55DNR47M03L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 270 nH | 470 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5.3 A | 4.8 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 14mOhm Max | 18.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 300MHz | 200MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 80°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
