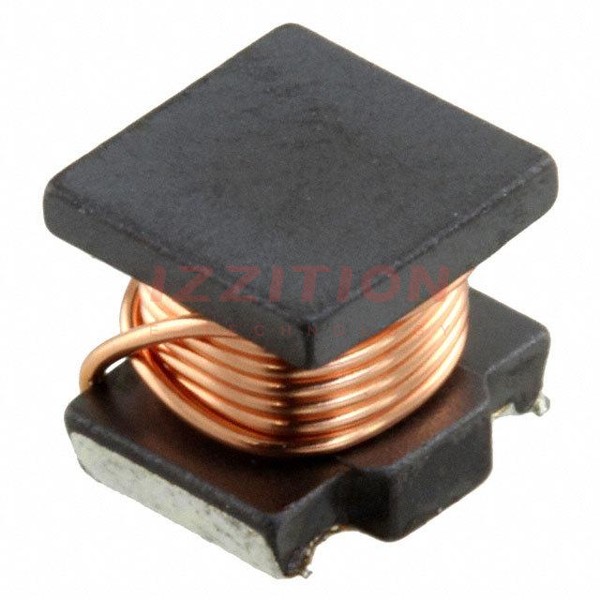

| Part Number | LQH55DN1R0M03L | LQH55DN1R5M03L | LQH55DN100M03L | LQH55DN150M03L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4 A | 3.7 A | 1.7 A | 1.4 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 26.6mOhm Max | 30.8mOhm Max | 130.2mOhm Max | 210mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 150MHz | 110MHz | 20MHz | 17MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 80°C | -40°C ~ 80°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Supplier Device Package | 2220 (5650 Metric) | 2220 (5650 Metric) | 2220 (5650 Metric) | - |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
