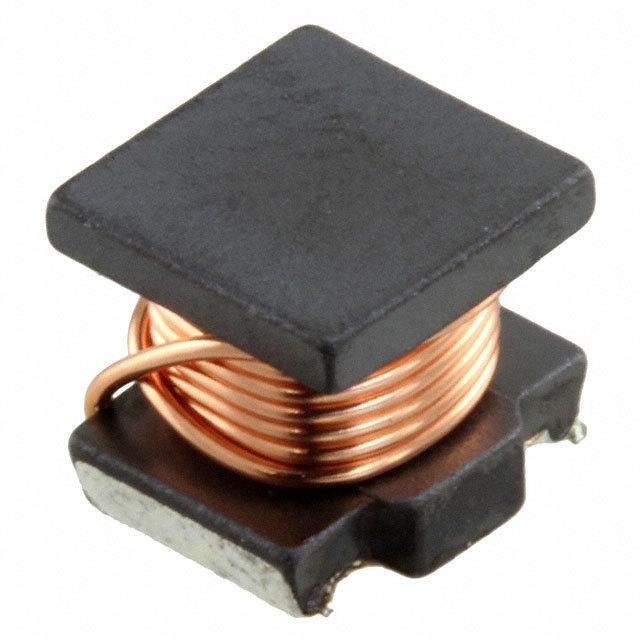

| Part Number | LQH55DN102M03L | LQH55DN103M03L | LQH55DN100M03L | LQH55DN101M03L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 mH | 10 mH | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 150 mA | 50 mA | 1.7 A | 560 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 14.42Ohm Max | 140Ohm Max | 130.2mOhm Max | 1.2Ohm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 1.7MHz | 500kHz | 20MHz | 6.5MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 80°C | -40°C ~ 80°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 1 MHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Supplier Device Package | 2220 (5650 Metric) | 2220 (5650 Metric) | 2220 (5650 Metric) | - |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
