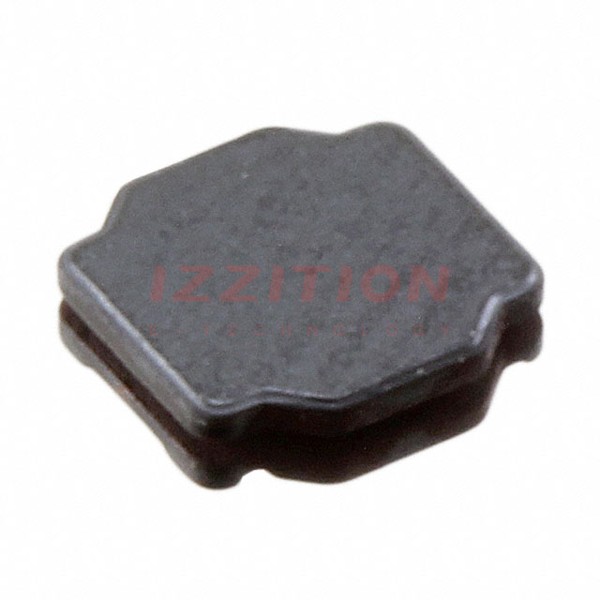

| Part Number | LQH44PNR68NGRL | LQH44PZR68NGRL |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | - |
| Material - Core | Ferrite | - |
| Inductance | 680 nH | - |
| Tolerance | ±30% | - |
| Current Rating (Amps) | 1.5 A | - |
| Current - Saturation (Isat) | 2.4A | - |
| Shielding | Shielded | - |
| DC Resistance (DCR) | 51.6mOhm Max | - |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 54MHz | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | - |
| Inductance Frequency - Test | 1 MHz | - |
| Features | - | - |
| Mounting Type | Surface Mount | - |
| Package / Case | Nonstandard | - |
| Supplier Device Package | 1515 (4040 Metric) | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - |
| Height - Seated (Max) | 0.039" (1.00mm) | - |
