Please send RFQ , we will respond immediately.

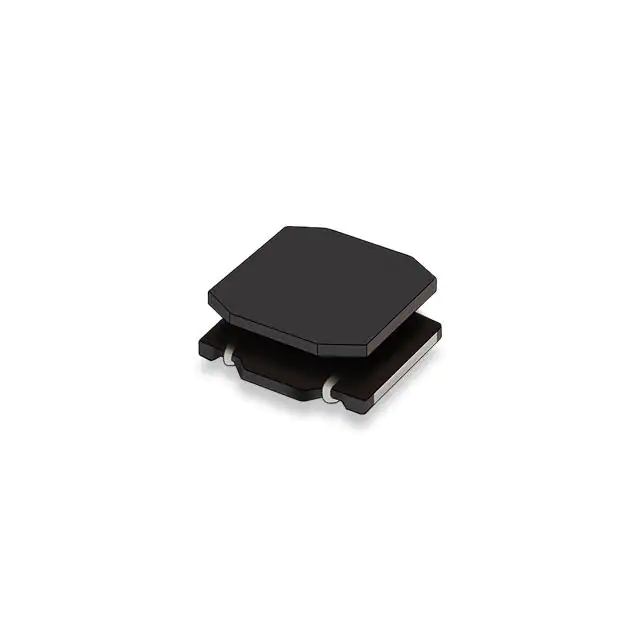

| Part Number | LQH44PN4R7MPRL | LQH44PH4R7MPRL | LQH44PN4R7MGRL | LQH44PN4R7MP0L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.9 A | 960 mA | 1.7 A |
| Current - Saturation (Isat) | 2.05A | 2.05A | 1.2A | 1.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 65mOhm | 78mOhm Max | 156mOhm Max | 96mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 40MHz | 40MHz | 17MHz | 40MHz |
| Ratings | - | AEC-Q200 | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1616 (4040 Metric) | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 1616 | - | 1515 (4040 Metric) | 1515 (4040 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.039" (1.00mm) | 0.071" (1.80mm) |
