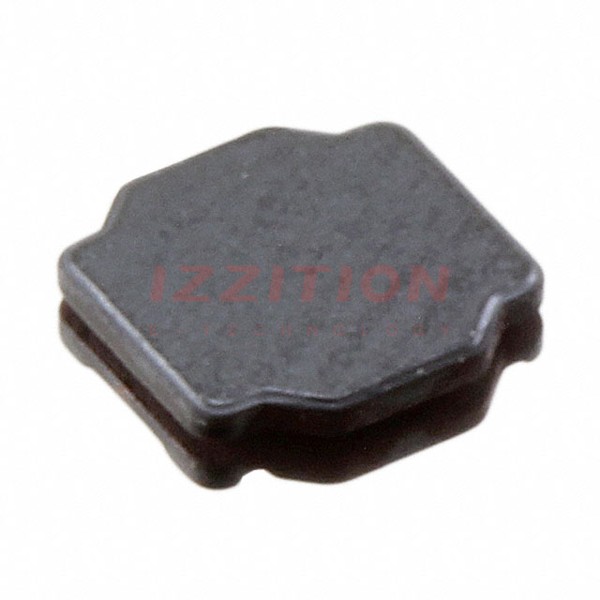

| Part Number | LQH44PN2R2NGRL | LQH44PZ2R2NGRL |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1.2 A | 2 A |
| Current - Saturation (Isat) | 1.6A | 1.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 88.8mOhm Max | 88.8mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 45MHz | 45MHz |
| Ratings | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 1515 (4040 Metric) | 1515 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
