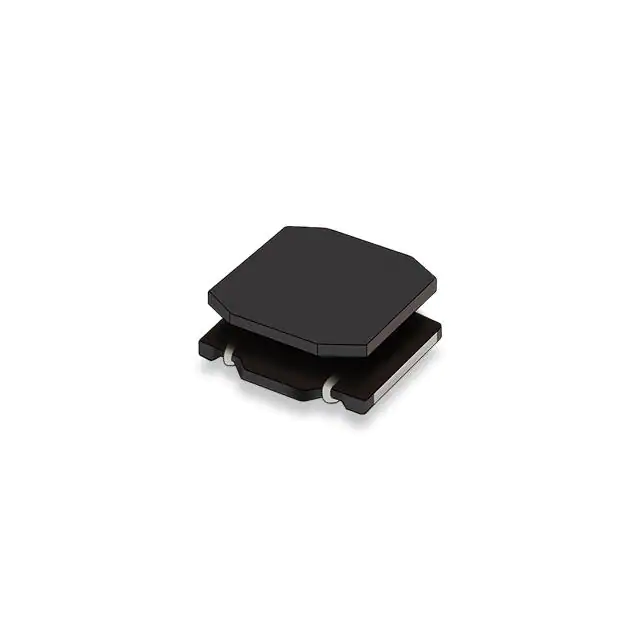

| Part Number | LQH44PN2R2MPRL | LQH44PH2R2MPRL | LQH44PN2R2MP0L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.4 A | 2.4 A | 1.8 A |
| Current - Saturation (Isat) | 3.3A | 3.3A | 2.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 42mOhm | 50.4mOhm Max | 58.8mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 55MHz | 55MHz | 70MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1616 (4040 Metric) | Nonstandard | Nonstandard |
| Supplier Device Package | 1616 | - | 1515 (4040 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
