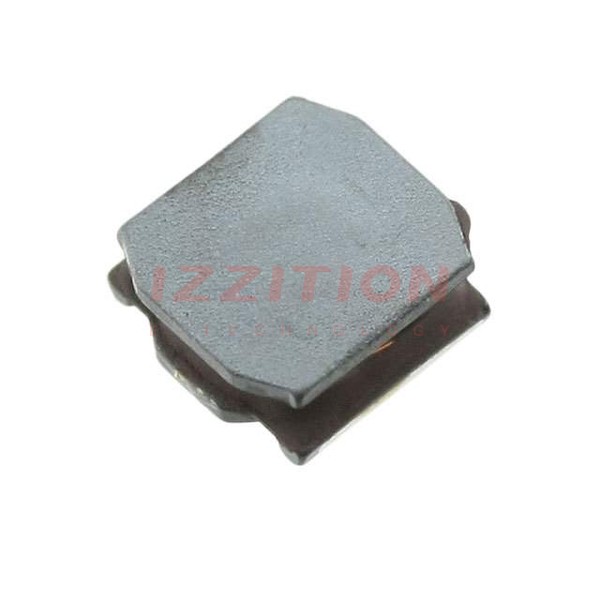

| Part Number | LQH44PN1R0NP0L | LQH44PN1R0NJ0L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.45 A | 1.53 A |
| Current - Saturation (Isat) | 2.95A | 2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 36mOhm Max | 57.6mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 90MHz | 130MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 1515 (4040 Metric) | 1515 (4040 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.047" (1.20mm) |
