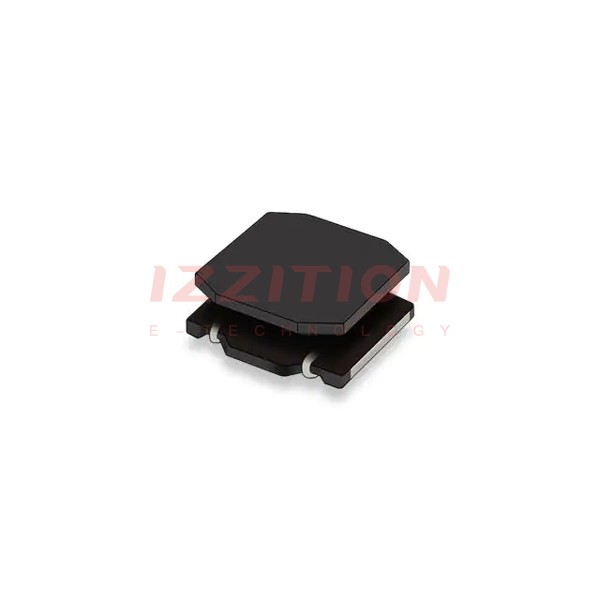

| Part Number | LQH44PN100MPRL | LQH44PN1R0MPRL | LQH44PN101MPRL | LQH44PN150MPRL | LQH44PH100MPRL | LQH44PN100MGRL | LQH44PN100MP0L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 1 µH | 100 µH | 15 µH | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.25 A | 3.2 A | 400 mA | 1.1 A | 1.25 A | 660 mA | 1.17 A |
| Current - Saturation (Isat) | 1.45A | 4.3A | 460mA | 1.3A | 1.45A | 800mA | 1.15A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 150mOhm | 25mOhm | 1.3Ohm | 200mOhm | 180mOhm Max | 324mOhm Max | 192mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | 25MHz | 85MHz | 6MHz | 18MHz | 25MHz | 13MHz | 25MHz |
| Ratings | - | - | - | - | AEC-Q200 | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1616 (4040 Metric) | 1616 (4040 Metric) | 1616 (4040 Metric) | 1616 (4040 Metric) | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 1616 | 1616 | 1616 | 1616 | - | 1515 (4040 Metric) | 1515 (4040 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.039" (1.00mm) | 0.071" (1.80mm) |
