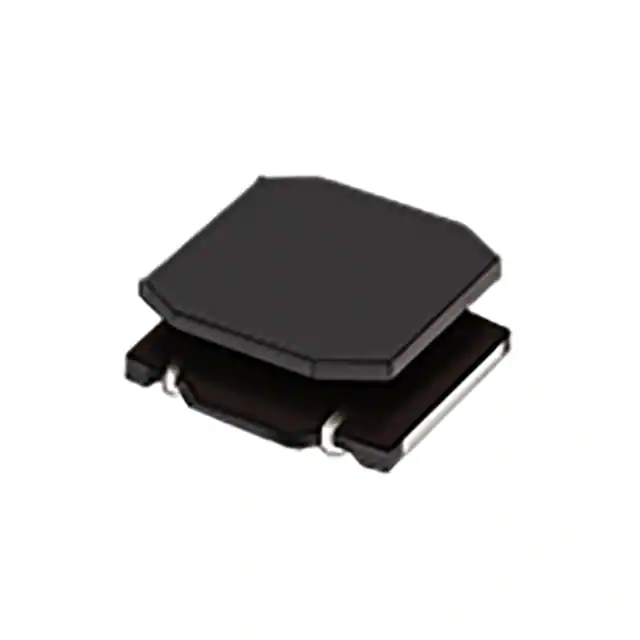

| Part Number | LQH44PH680MPRL | LQH44PN680MPRL |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 68 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 500 mA | 500 mA |
| Current - Saturation (Isat) | 580mA | 580mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.2Ohm Max | 1Ohm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 8MHz | 8MHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 1616 (4040 Metric) |
| Supplier Device Package | - | 1616 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
