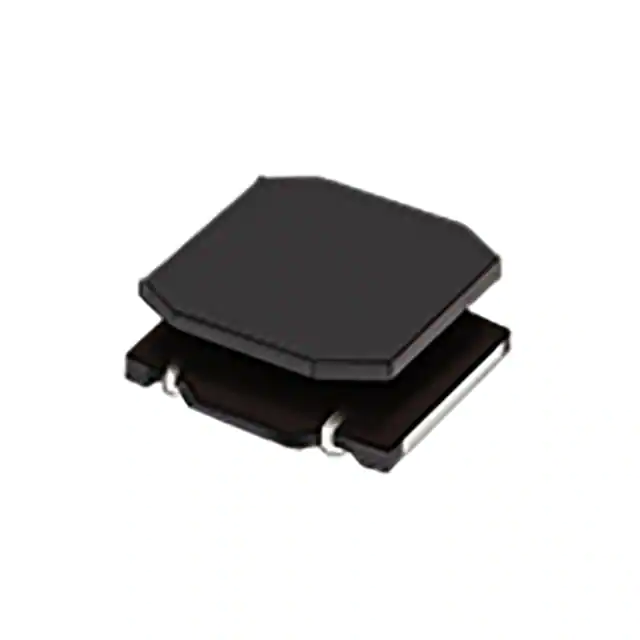

| Part Number | LQH44PH220MPRL | LQH44PN220MPRL | LQH44PH221MPRL |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH | 220 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 900 mA | 900 mA | 280 mA |
| Current - Saturation (Isat) | 1.05A | 1.05A | 330mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 348mOhm Max | 290mOhm | 3.78Ohm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 17MHz | 17MHz | 4MHz |
| Ratings | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 1616 (4040 Metric) | Nonstandard |
| Supplier Device Package | - | 1616 | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
