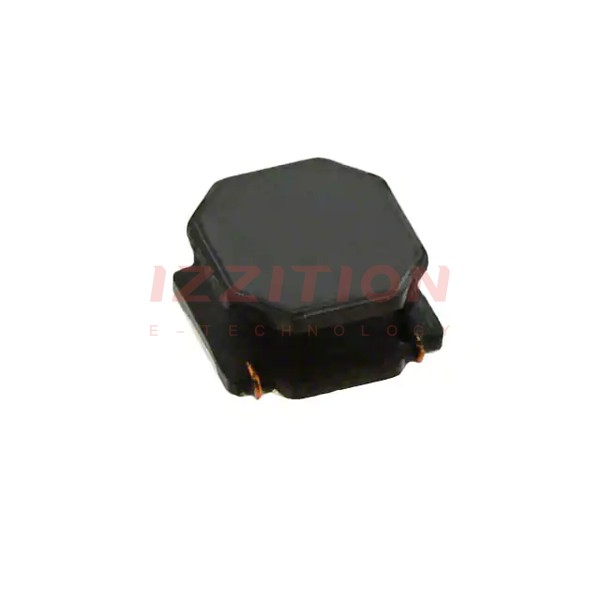

| Part Number | LQH44NN6R8K03L | LQH43NN6R8K03L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 1.6 A | 450 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 66.3mOhm Max | 500mOhm Max |
| Q @ Freq | - | 30 @ 1MHz |
| Frequency - Self Resonant | 19.8MHz | 31MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 1812 (4532 Metric) |
| Supplier Device Package | 1515 (4040 Metric) | 1812 (4532 Metric) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.110" (2.80mm) |
