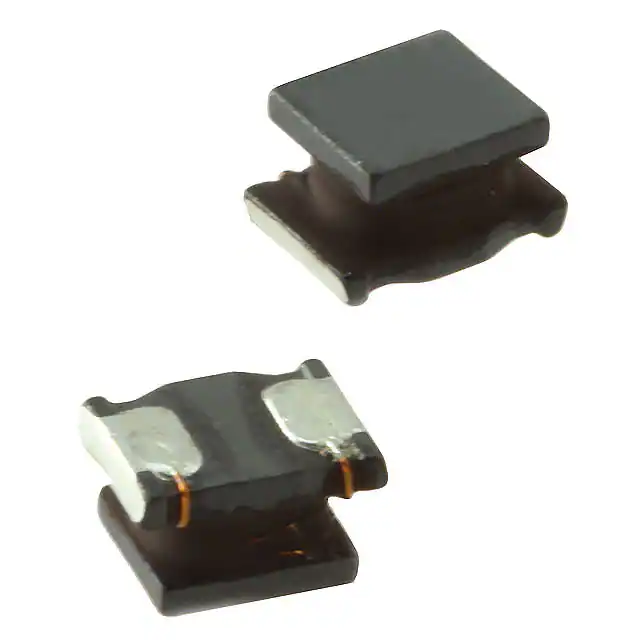

| Part Number | LQH43PN1R0N26L | LQH43PB1R0N26L | LQH43PH1R0N26L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 3.3 A | 1.41 A | 3.3 A |
| Current - Saturation (Isat) | 3.4A | 3.4A | 3.4A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 31.2mOhm Max | 31.2mOhm Max | 31.2mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 100MHz | 100MHz | 100MHz |
| Ratings | - | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) | Nonstandard |
| Supplier Device Package | 1812 (4532 Metric) | 1812 (4532 Metric) | - |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
