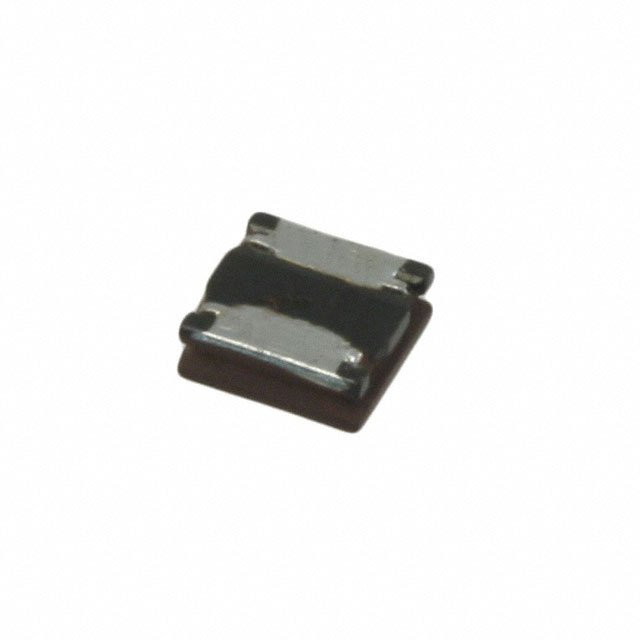

| Part Number | LQH3NPN100MMRE | LQH3NPN1R0MMRE |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 10 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.15 A | 2.15 A |
| Current - Saturation (Isat) | 590mA | 1.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 252mOhm Max | 50.4mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 30MHz | 135MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1212 (3030 Metric) | 1212 (3030 Metric) |
| Supplier Device Package | 1212 (3030 Metric) | 1212 (3030 Metric) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
