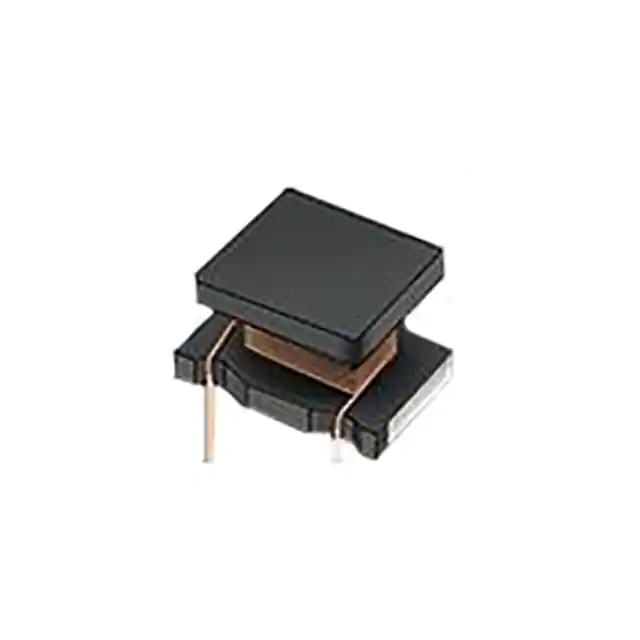

| Part Number | LQH32NZ270J23L | LQH32NZ271J23L | LQH32NZ470J23L | LQH32NH270J23L | LQH32NZ220J23L |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 27 µH | 270 µH | 47 µH | 27 µH | 22 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 125 mA | 65 mA | 100 mA | 195 mA | 150 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.1Ohm Max | 12.5Ohm Max | 4.3Ohm Max | 1.2Ohm Max | 2.8Ohm Max |
| Q @ Freq | 35 @ 1MHz | 40 @ 796kHz | 40 @ 1MHz | 35 @ 1MHz | 35 @ 1MHz |
| Frequency - Self Resonant | 13MHz | 5MHz | 11MHz | 20MHz | 14MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | Nonstandard | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 (3225 Metric) | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
