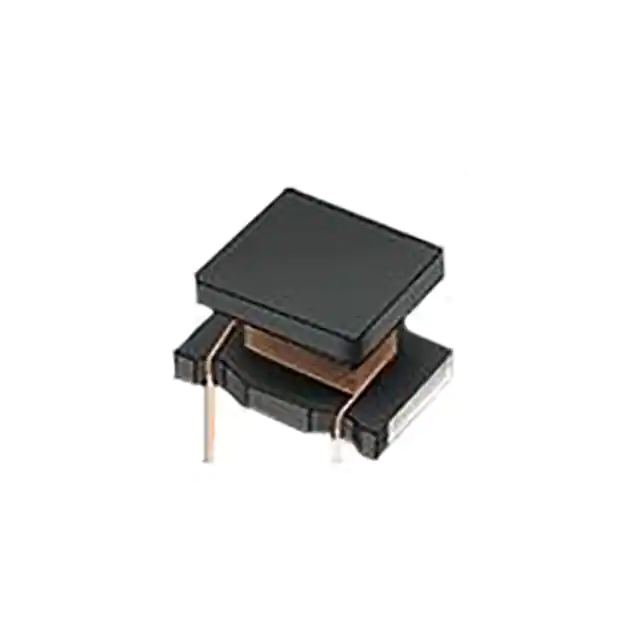

| Part Number | LQH32NZ120J23L | LQH32NZ150J23L | LQH32NZ180J23L | LQH32NZ220J23L | LQH32NZ121J23L | LQH32NZ820J23L | LQH32NH120J23L | LQH32NZ100J23L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 15 µH | 18 µH | 22 µH | 120 µH | 82 µH | 12 µH | 10 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 180 mA | 170 mA | 165 mA | 150 mA | 75 mA | 70 mA | 270 mA | 190 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2Ohm Max | 2.2Ohm Max | 2.5Ohm Max | 2.8Ohm Max | 8Ohm Max | 6.2Ohm Max | 600mOhm Max | 1.8Ohm Max |
| Q @ Freq | 35 @ 1MHz | 35 @ 1MHz | 35 @ 1MHz | 35 @ 1MHz | 40 @ 796kHz | 40 @ 1MHz | 35 @ 1MHz | 35 @ 1MHz |
| Frequency - Self Resonant | 18MHz | 16MHz | 15MHz | 14MHz | 7.5MHz | 8.5MHz | 30MHz | 20MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | Nonstandard | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 (3225 Metric) | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
