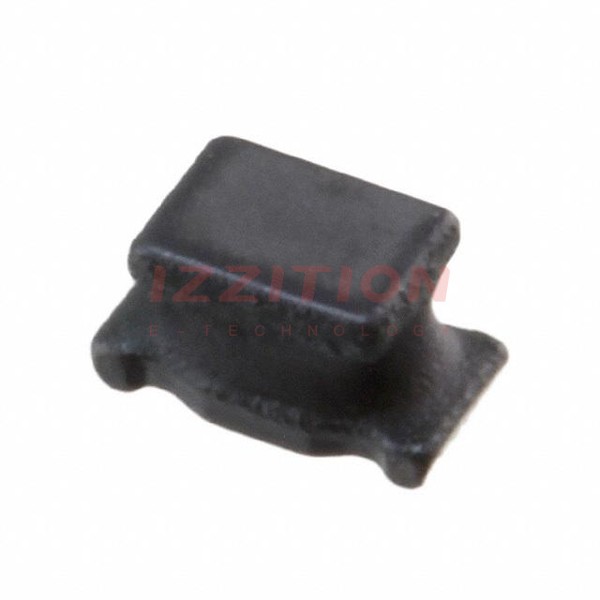

| Part Number | LQH31CN220K03L | LQH31MN220K03L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Wirewound |
| Material - Core | Ferrite | - |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 160 mA | 85 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.9Ohm Max | 4.03Ohm Max |
| Q @ Freq | - | 40 @ 2.5MHz |
| Frequency - Self Resonant | 14MHz | 14MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
