LQH31CN100K03L
  • Share:

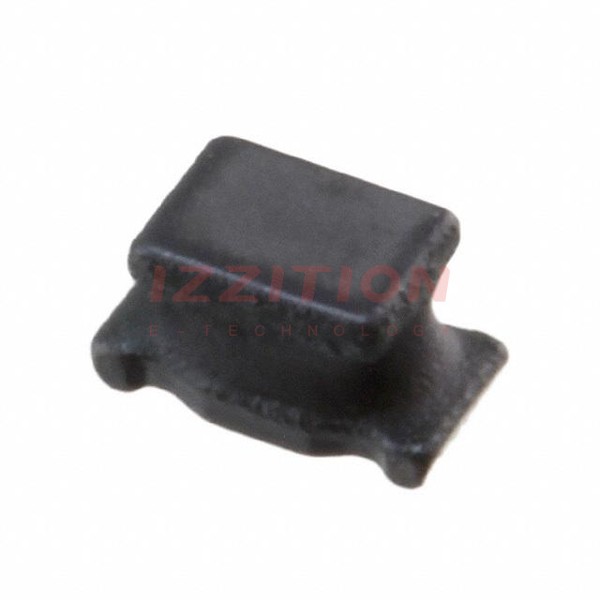

Murata Electronics LQH31CN100K03L

Manufacturer No:
LQH31CN100K03L
Manufacturer:
Murata Electronics
Package:
Tape & Reel (TR)
Datasheet:
LQH31CN100K03L Datasheet
ECAD Model:
-
Description:
FIXED IND 10UH 230MA 1.69OHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:10 µH
Tolerance:±10%
Current Rating (Amps):230 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.69Ohm Max
Q @ Freq:-
Frequency - Self Resonant:20MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric)
Supplier Device Package:1206
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.079" (2.00mm)
0 Remaining View Similar

In Stock

$0.70
964

Please send RFQ , we will respond immediately.

Similar Products

Part Number LQH31CN100K03L LQH31CN101K03L   LQH31MN100K03L
Manufacturer Murata Electronics Murata Electronics Murata Electronics
Product Status Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite
Inductance 10 µH 100 µH 10 µH
Tolerance ±10% ±10% ±10%
Current Rating (Amps) 230 mA 80 mA 100 mA
Current - Saturation (Isat) - - -
Shielding Unshielded Unshielded Unshielded
DC Resistance (DCR) 1.69Ohm Max 15.6Ohm Max 3.25Ohm Max
Q @ Freq - - 35 @ 5MHz
Frequency - Self Resonant 20MHz 7MHz 20MHz
Ratings - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Inductance Frequency - Test 1 MHz 1 MHz 1 MHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric)
Supplier Device Package 1206 1206 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
