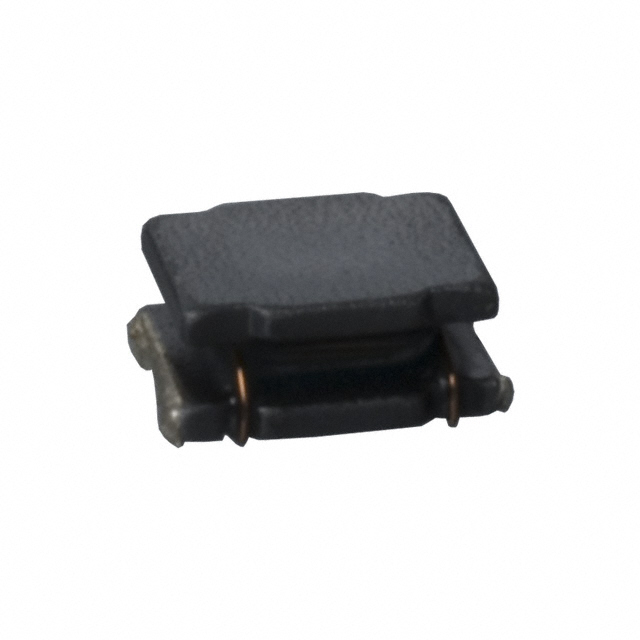

| Part Number | LQH2MCN220K02L | LQH2MCN820K02L | LQH2MCN270K02L | LQH2MCN120K02L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 82 µH | 27 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 185 mA | 90 mA | 180 mA | 210 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.73Ohm Max | 9.75Ohm Max | 3.25Ohm Max | 1.82Ohm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 30MHz | 14MHz | 30MHz | 44MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
