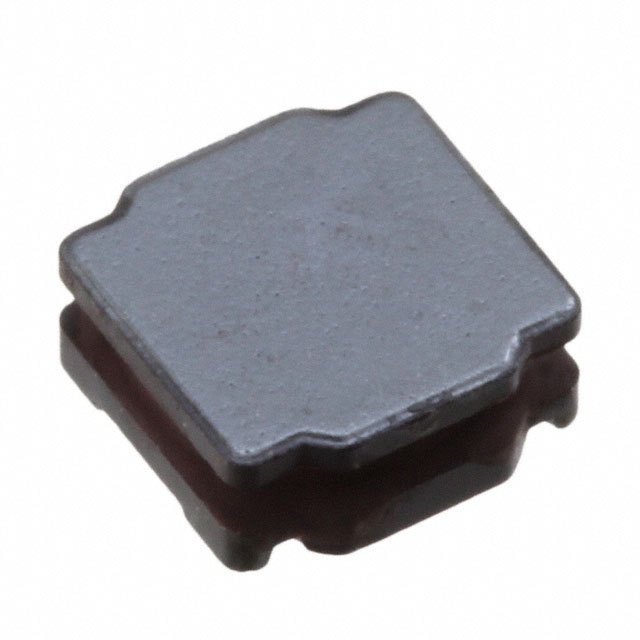

| Part Number | LQH2HPNR47NJRL | LQH2HPZR47NJRL |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 470 nH | 470 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1.65 A | 2.75 A |
| Current - Saturation (Isat) | 3.5A | 3.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 37.2mOhm Max | 37.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 190MHz | 190MHz |
| Ratings | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
