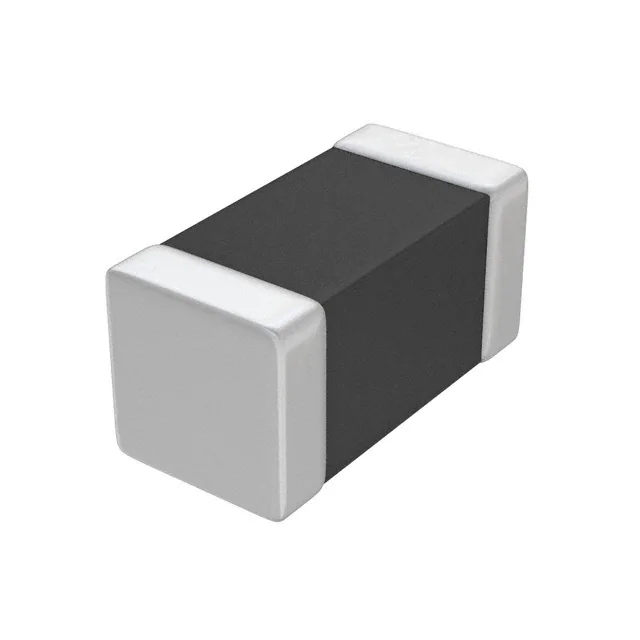

| Part Number | LQG18HN15NJ00D | LQG18HN18NJ00D | LQG18HH15NJ00D | LQG18HN10NJ00D | LQG18HN12NJ00D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Air | Air | Air | Air | Air |
| Inductance | 15 nH | 18 nH | 15 nH | 10 nH | 12 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 350 mA | 350 mA | 350 mA | 400 mA | 600 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | - | Unshielded | Unshielded |
| DC Resistance (DCR) | 400mOhm Max | 450mOhm Max | 400mOhm Max | 300mOhm Max | 350mOhm Max |
| Q @ Freq | 12 @ 100MHz | 12 @ 100MHz | 12 @ 100MHz | 12 @ 100MHz | 12 @ 100MHz |
| Frequency - Self Resonant | 2.8GHz | 2.6GHz | 1.8GHz | 3.5GHz | 3GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
