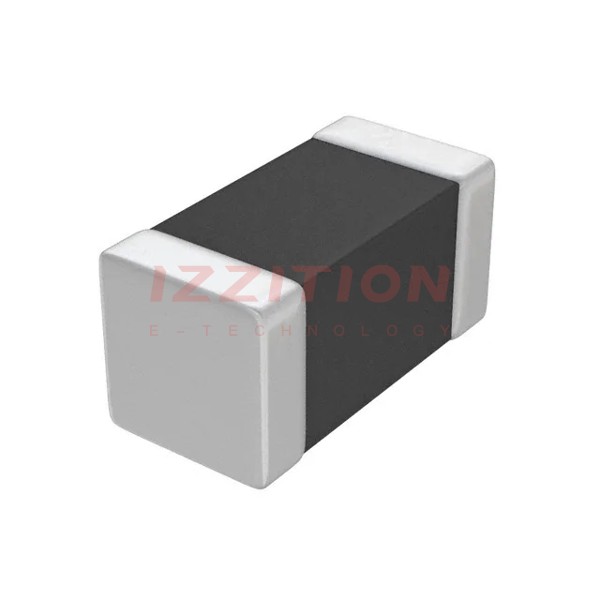

| Part Number | LQG18HHR12J00D | LQG18HHR15J00D | LQG18HHR22J00D | LQG18HHR18J00D | LQG18HHR10J00D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Air | Air | Air | Air | Air |
| Inductance | 120 nH | 150 nH | 220 nH | 180 nH | 100 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | - | - | - | - | - |
| DC Resistance (DCR) | 1.1Ohm Max | 1.2Ohm Max | 1.5Ohm Max | 1.3Ohm Max | 900mOhm Max |
| Q @ Freq | 14 @ 100MHz | 14 @ 100MHz | 14 @ 100MHz | 14 @ 100MHz | 12 @ 100MHz |
| Frequency - Self Resonant | 550MHz | 550MHz | 450MHz | 500MHz | 600MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
