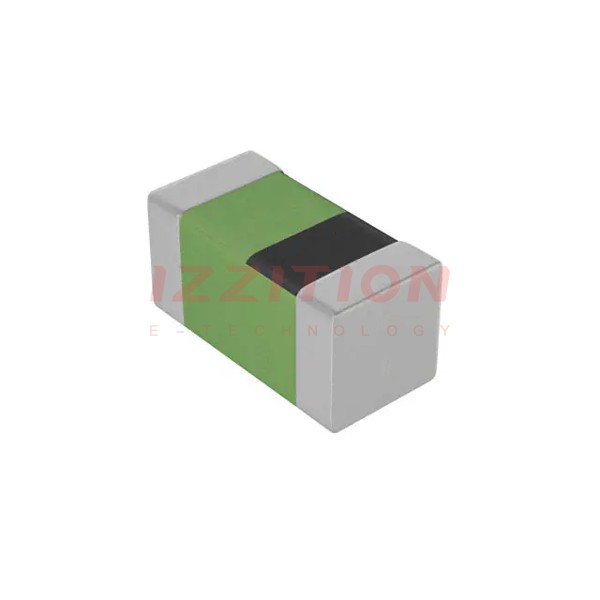

| Part Number | LQG15WH6N8J02D | LQG15WH6N8H02D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Air | Air |
| Inductance | 6.8 nH | 6.8 nH |
| Tolerance | ±5% | ±3% |
| Current Rating (Amps) | 700 mA | 700 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 140mOhm Max | 140mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 4GHz | 4GHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.020" (0.51mm) | 0.020" (0.51mm) |
