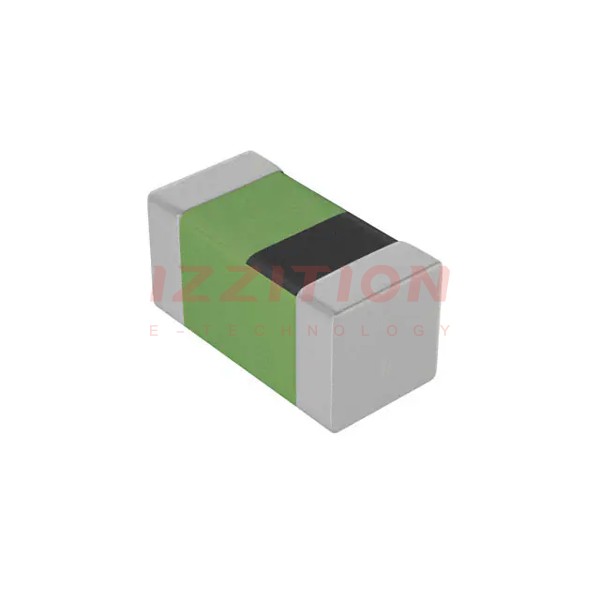

| Part Number | LQG15HZ7N5H02D | LQG15HS7N5H02D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Air | Air |
| Inductance | 7.5 nH | 7.5 nH |
| Tolerance | ±3% | ±3% |
| Current Rating (Amps) | 550 mA | 550 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 240mOhm Max | 240mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 4.2GHz | 4.2GHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) |
