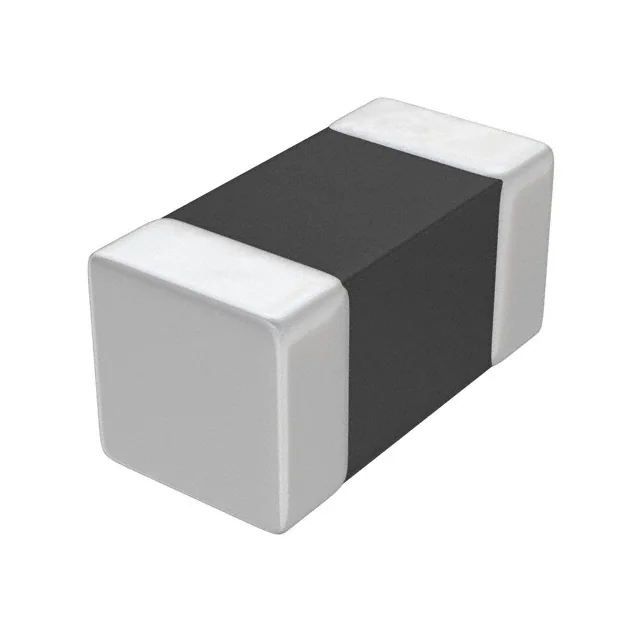

| Part Number | LQB15NNR27K10D | LQB15NNR27M10D | LQB15NNR47K10D | LQB18NNR27K10D | LQB15NNR22K10D | LQB15NNR27J10D |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 270 nH | 270 nH | 470 nH | 270 nH | 220 nH | 270 nH |
| Tolerance | ±10% | ±20% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | 330 mA | 330 mA | 300 mA | 450 mA | 380 mA | 330 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 512.5mOhm Max | 512.5mOhm Max | 800mOhm Max | 450mOhm Max | 437.5mOhm Max | 512.5mOhm Max |
| Q @ Freq | 10 @ 25MHz | 10 @ 25MHz | 10 @ 25MHz | 25 @ 25MHz | 10 @ 25MHz | 10 @ 25MHz |
| Frequency - Self Resonant | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0603 (1608 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0603 (1608 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.037" (0.95mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
