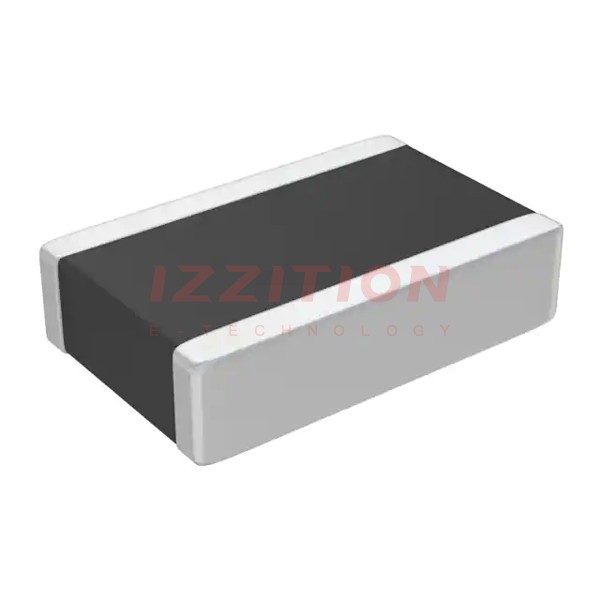

| Part Number | LLL215R71H103MA11L | LLL315R71H103MA11L | LLL215R71E103MA11L | LLL215R71H103MA11K |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy | Not For New Designs | Not For New Designs |
| Capacitance | 10000 pF | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50V | 50V | 25V | 50V |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0508 (1220 Metric) | 0612 (1632 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
