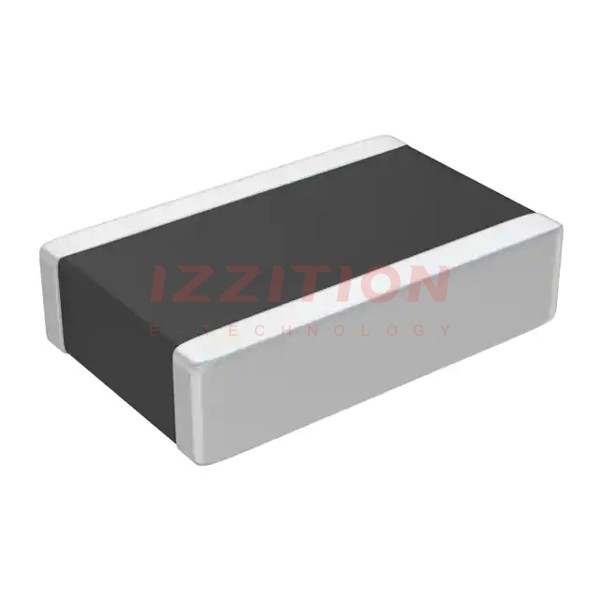

| Part Number | LLL215R71E223MA11L | LLM215R71E223MA11L | LLL315R71E223MA11L | LLL215R71E223MA11K |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 0.022 µF | 0.022 µF | 0.022 µF | 0.022 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25V | 25V | 25V | 25V |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Multi-Terminal) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0508 (1220 Metric) | 0805 (2012 Metric) | 0612 (1632 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.020" (0.50mm) | 0.022" (0.55mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
