Please send RFQ , we will respond immediately.

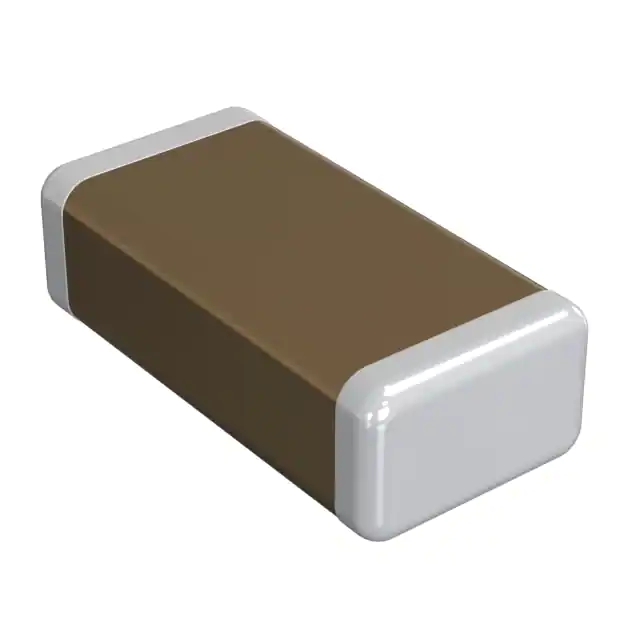

| Part Number | GRM31A5C3A120JW01D | GRM31A5C3A220JW01D | GRM31A5C3A820JW01D | GRM31A5C3A121JW01D | GRM31A5C3A160JW01D | GRM31A5C3A620JW01D | GRM31A5C3A130JW01D | GRM31A5C3A150JW01D | GRM31A5C3A180JW01D | GRM31A5C3A100JW01D | GRM31A5C3A110JW01D | GRM31A5C3A120GW01D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 12 pF | 22 pF | 82 pF | 120 pF | - | - | - | 15 pF | 18 pF | 10 pF | - | 12 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | - | - | - | ±5% | ±5% | ±5% | - | ±2% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | - | - | - | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | - | 1000V (1kV) |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | - | - | - | C0G, NP0 | C0G, NP0 | C0G, NP0 | - | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | - | - | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | - | - | - | General Purpose | General Purpose | General Purpose | - | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | - | - | - | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | - | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | - | - | - | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | - | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.051" (1.30mm) | - | - | - | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | - | 0.039" (1.00mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - | - | - |
