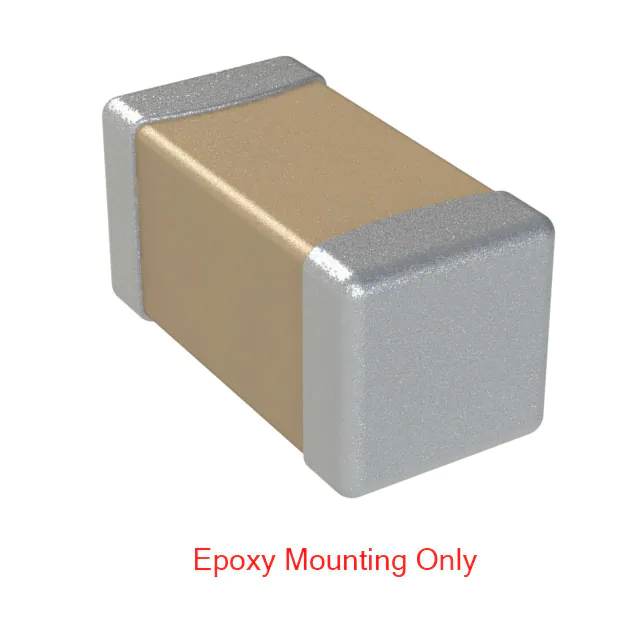

| Part Number | GCG188R91H333KA03D | GCG188R91H333KA03J | GCG188R91H333MA03D |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Capacitance | 0.033 µF | 0.033 µF | 0.033 µF |
| Tolerance | ±10% | ±10% | ±20% |
| Voltage - Rated | 50V | 50V | 50V |
| Temperature Coefficient | X8R | X8R | X8R |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | Epoxy Mountable | Epoxy Mountable | Epoxy Mountable |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
| Mounting Type | Surface Mount, MLCC, Epoxy | Surface Mount, MLCC, Epoxy | Surface Mount, MLCC, Epoxy |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Lead Spacing | - | - | - |
| Lead Style | - | - | - |
