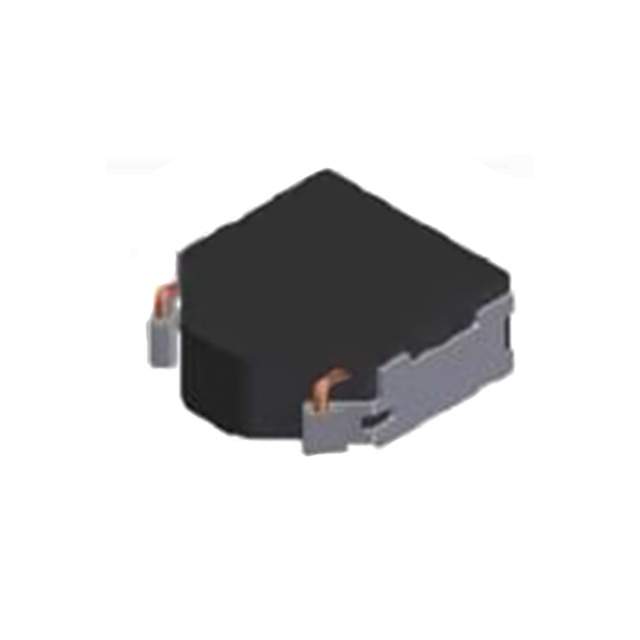

| Part Number | FDSD0630-H-1R0MB=P3 | FDSD0630-H-1R0M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Metal |
| Inductance | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9.4 A | 9.4 A |
| Current - Saturation (Isat) | 15A | 15A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 11mOhm Max | 11mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
