Please send RFQ , we will respond immediately.

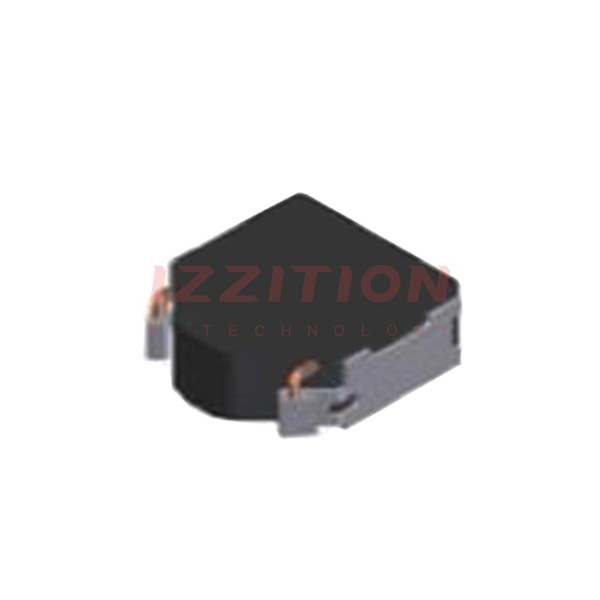

| Part Number | FDSD0518-H-1R0M=P3 | FDSD0518-H-1R5M=P3 | FDSD0512-H-1R0M=P3 | FDSD0518-H-100M=P3 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Metal | Metal |
| Inductance | 1 µH | 1.5 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.1 A | 5.3 A | 4 A | 2.4 A |
| Current - Saturation (Isat) | 8.7A | 6.7A | 6.1A | 2.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 21mOhm Max | 29mOhm Max | 44mOhm Max | 150mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | - | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.205" L x 0.193" W (5.20mm x 4.90mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.047" (1.20mm) | 0.071" (1.80mm) |
