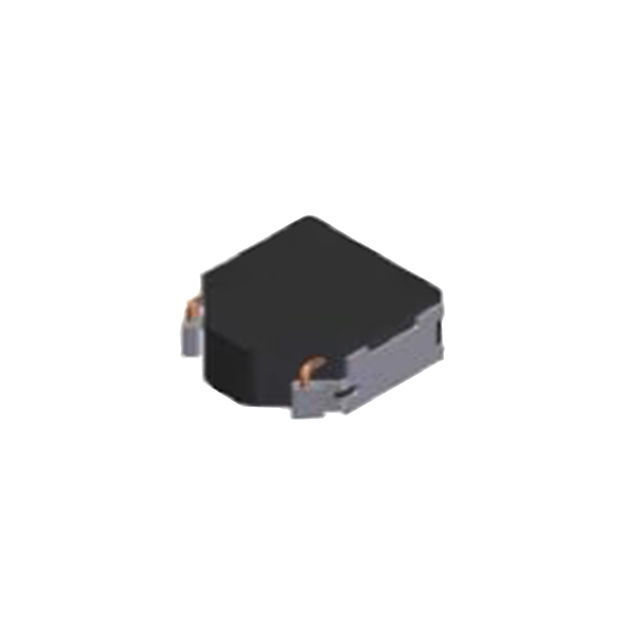

| Part Number | FDSD0420-H-100M=P3 | FDSD0420-H-1R0M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Metal |
| Inductance | 10 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 5.1 A |
| Current - Saturation (Isat) | 2.5A | 6.8A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 200mOhm Max | 29mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.165" L x 0.165" W (4.20mm x 4.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
