Murata Electronics-ECASD41B156M045K00 - Aluminum - Polymer Capacitors Product Specifications and Latest Quotes

Type:	Polymer
Capacitance:	15 µF
Tolerance:	±20%
Voltage - Rated:	12.5 V
ESR (Equivalent Series Resistance):	45mOhm
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Applications:	General Purpose
Features:	-
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	1 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max):	0.075" (1.90mm)
Surface Mount Land Size:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type:	Surface Mount
Package / Case:	2917 (7343 Metric)

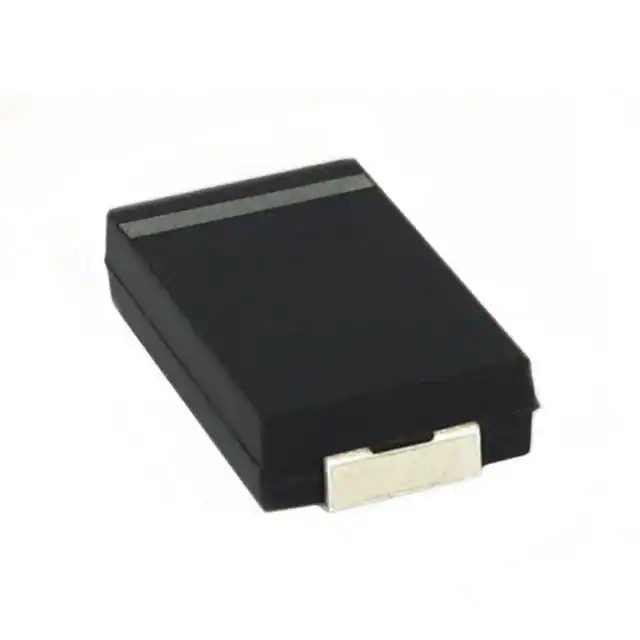

Murata Electronics ECASD41B156M045K00
