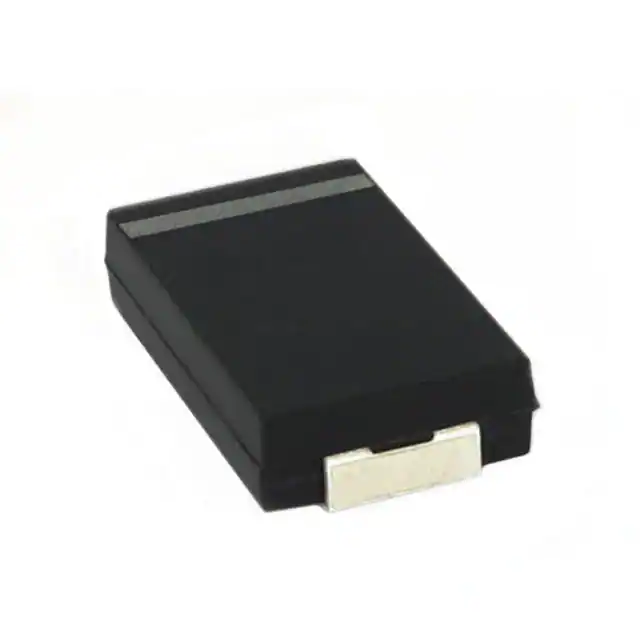

| Part Number | ECASD40J157M015K00 | ECASD40J157Y015K00 | ECASD40J107M015K00 | ECASD40J127M015K00 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Polymer | - | Polymer | - |
| Capacitance | 150 µF | - | 100 µF | - |
| Tolerance | ±20% | - | ±20% | - |
| Voltage - Rated | 6.3 V | - | 6.3 V | - |
| ESR (Equivalent Series Resistance) | 15mOhm | - | 15mOhm | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | - | 1000 Hrs @ 105°C | - |
| Operating Temperature | -40°C ~ 105°C | - | -40°C ~ 105°C | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | - | General Purpose | - |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - |
| Ripple Current @ High Frequency | 2 A @ 100 kHz | - | 2 A @ 100 kHz | - |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - |
| Height - Seated (Max) | 0.079" (2.00mm) | - | 0.075" (1.90mm) | - |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | - |
| Mounting Type | Surface Mount | - | Surface Mount | - |
| Package / Case | 2917 (7343 Metric) | - | 2917 (7343 Metric) | - |
