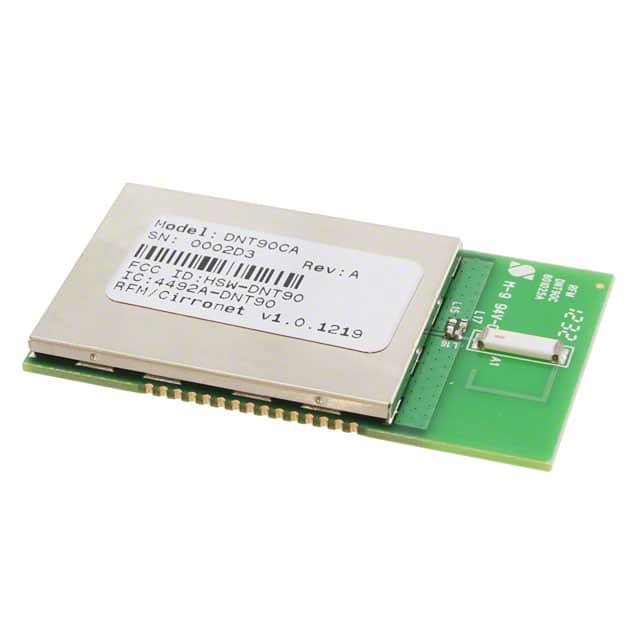

| Part Number | DNT90CA | DNT90MCA | DNT90PA | DNT90C |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | - | - | - | - |
| Modulation | FHSS, FSK | FHSS | FHSS, FSK | FHSS, FSK |
| Frequency | 900MHz | 900MHz | 900MHz | 900MHz |
| Data Rate | 500kbps | 500kbps | 500kbps | 500kbps |
| Power - Output | 22dBm | 22dBm | 22dBm | 22dBm |
| Sensitivity | -100dBm | -100dBm | -100dBm | -100dBm |
| Serial Interfaces | SPI, UART | SPI, UART | SPI, UART | SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Antenna Not Included, U.FL |
| Utilized IC / Part | - | - | - | - |
| Memory Size | - | - | - | - |
| Voltage - Supply | 3.3V ~ 5.5V | 3.3V | 3.3V ~ 5.5V | 3.3V ~ 5.5V |
| Current - Receiving | 25mA ~ 110mA | 40mA | 25mA ~ 110mA | 25mA ~ 110mA |
| Current - Transmitting | 170mA (Max) | 170mA | 170mA (Max) | 170mA (Max) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 30-SMD Module | 30-SMD Module | 30-DIP Module | - |
