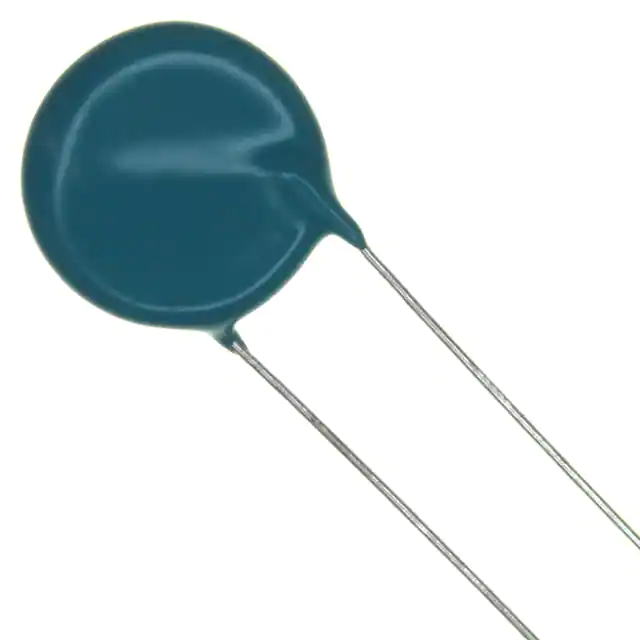

| Part Number | DHRB34A221M2BB | DHRB34B221M2BB | DHRB34C221M2BB |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 220 pF | 220 pF | 220 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10000V (10kV) | 12000V (12kV) | 15000V (15kV) |
| Temperature Coefficient | B | B | B |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 100°C | -25°C ~ 85°C |
| Features | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.354" Dia (9.00mm) | 0.354" Dia (9.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.591" (15.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) |
| Lead Style | Straight | Straight | Straight |
