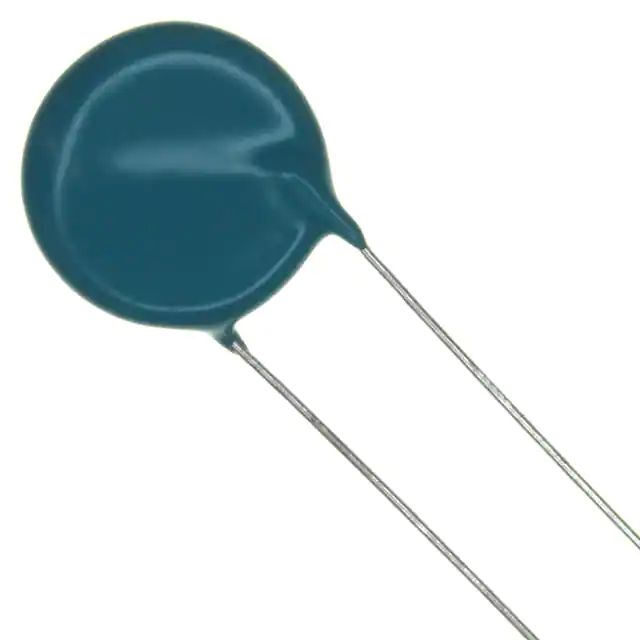

| Part Number | DHR4E4A101K2BB | DHR4E4A102K2BB | DHR4E4B101K2BB | DHR4E4C101K2BB | DHR4E4A151K2BB |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 pF | 1000 pF | 100 pF | 100 pF | 150 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 10000V (10kV) | 10000V (10kV) | 12000V (12kV) | 15000V (15kV) | 10000V (10kV) |
| Temperature Coefficient | ZM | ZM | ZM | ZM | ZM |
| Operating Temperature | -55°C ~ 100°C | -25°C ~ 100°C | -25°C ~ 100°C | -25°C ~ 100°C | -25°C ~ 100°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | - |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.591" Dia (15.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.630" (16.00mm) | 0.472" (12.00mm) | 0.354" (9.00mm) | 0.472" (12.00mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.374" (9.50mm) |
| Lead Style | Straight | Formed Leads | Straight | Straight | Straight |
