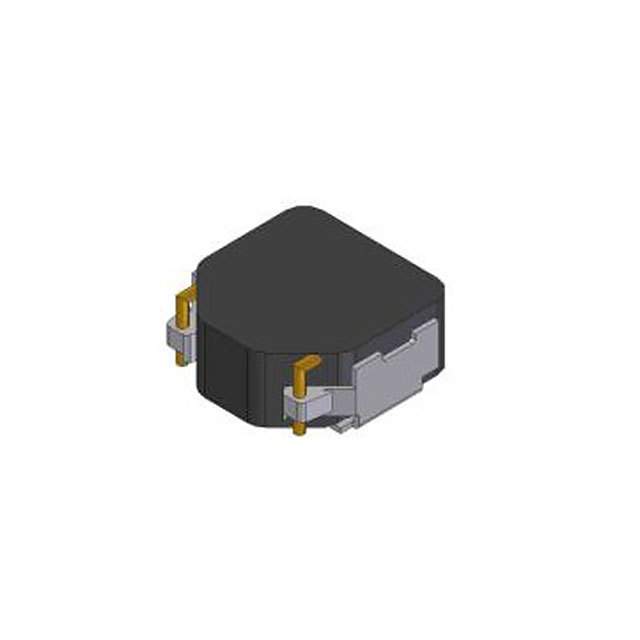

| Part Number | DFEH7030D-5R6M=P3 | DFEG7030D-5R6M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs |
| Type | - | - |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.8 A | 3.8 A |
| Current - Saturation (Isat) | 5.4A | 5.4A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 54mOhm Max | 54mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
