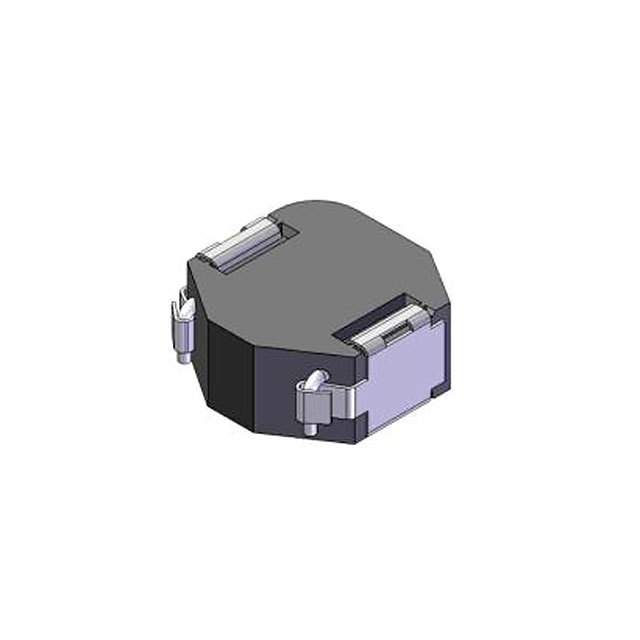

| Part Number | DFEH12060D-2R2M=P3 | DFEH12060D-8R2M=P3 | DFEG12060D-2R2M=P3 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | - | - | - |
| Material - Core | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 2.2 µH | 8.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 16 A | 8 A | 16 A |
| Current - Saturation (Isat) | 21A | 11A | 21A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.4mOhm Max | 17mOhm Max | 4.4mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.512" L x 0.496" W (13.00mm x 12.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
